Troubleshooting Revit to NavisWorks

Have you ever tried to Export a model to Navisworks, but none of the Instance Parameters show up once you bring it into Navisworks?

One of our Application Engineers, David Kaldy may have a solution!

Download and install the Navisworks NMC Export Utility:

Then open the Revit > go to the Addins > External Tools > Navisworks 2011.

Select the Navisworks settings… > make the following changes:
















You can also experiment with going to the Interface category > Selection > Resolution (using Layer seems to work well)
Then export.

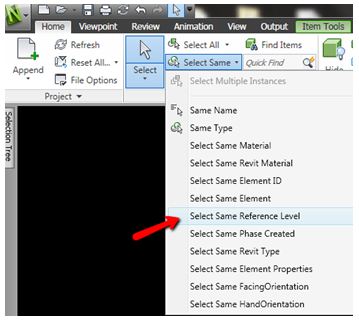

Open this file in Navisworks > select the object then Select Same > Select the appropriate setting:
